Key Features of Ultimaker PETG

\n

Ultimaker PETG sets the standard for industrial applications. Easy to use and versatile, it's suitable for a wide range of use cases.

Key features include:

  • Available in a variety of colors, including transluscent and fluorescent
  • Good printability
  • Tough material
  • Resistance to alcohols and weak acids or bases
  • Temperature resistance up to 76 °C.
  • Compatible with Ultimaker PVA, Ultimaker Breakaway, and AquaSys support materials
\n
\n

Typical Applications

  • Visual prototyping
  • Functional prototyping
  • Short-run manufacturing
  • Custom Components
  • Fittesting
  • Tooling
  • Custom Connectors or packages for liquids
  • 3D printed prosthetic devices
\"\"
\n

Recommended Print Settings

\n
\n
\n

Extruder Temperature

\n

240C

\n

Build Plate Temperature

\n

85C

\n

Fan Speed

\n

50%

\n

Recommended Printing Speed

\n

30-60 mm/sec

Specifications and Physical Properties

\n
\n

Material Specifications

\n

Diameter

\n

2.85 ± 0.05 mm

\n

Max roundness deviation

\n

0.05 mm

\n

Net filament weight

\n

750 g

\n

Filament length

\n

~ 93 m

Color Information

\n
\n

PETG Black

\n

RAL 9017

\n

PETG White

\n

RAL 9003

\n

PETG Silver

\n

RAL 9006

\n

PETG Transparent

\n

N/A

\n

PETG Blue

\n

RAL 5005

\n

PETG Blue Translucent

\n

Pantone 286 C

\n

PETG Red

\n

RAL 3020

\n

PETG Red Translucent

\n

Pantone 7622 C

\n

PETG Green

\n

RAL 6024

\n

PETG Green Translucent

\n

Pantone 3425 C

\n

PETG Yellow

\n

RAL 1016

\n

PETG Yellow Fluorescent

\n

Pantone 3570 C

\n

PETG Orange

\n

Pantone 1655 C

Physical Properties

\n

Test Method

\n

Typical Value

\n

XY (Flat)

\n

YZ (Side)

\n

Z (Up)

\n

Tensile (Young’s) modulus

\n

ASTM D3039 (1 mm / min)

\n

1939 ± 28 MPa

\n

1874 ± 31 MPa

\n

1711 ± 45 MPa

\n

Tensile stress at yield

\n

ASTM D3039 (5 mm / min)

\n

46.2 ± 0.8 MPa

\n

50.3 ± 1.0 MPa

\n

No yield

\n

Tensile stress at break

\n

ASTM D3039 (5 mm / min)

\n

38.5 ± 1.4 MPa

\n

44.0 ± 3.7 MPa

\n

19.0 ± 6.4 MPa

\n

Elongation at yield

\n

ASTM D3039 (5 mm / min)

\n

5.9 ± 0.1 %

\n

6.0 ± 0.2 %

\n

No yield

\n

Elongation at break

\n

ASTM D3039 (5 mm / min)

\n

7.6 ± 0.2 %

\n

6.4 ± 0.6 %

\n

1.8 ± 0.8 %

\n

Flexural modulus

\n

ISO 178 (1 mm / min)

\n

1882 ± 30 MPa

\n

1681 ± 61 MPa

\n

1489 ± 25 MPa

\n

Flexural strength

\n

ISO 178 (5 mm / min)

\n

78.9 ± 1.0 MPa at 5.5% strain

\n

75.8 ± 2.0 MPa at 5.5% strain

\n

50 ± 3.5 MPa at 3.6% strain

\n

Flexural strain at break

\n

ISO 178 (5 mm / min)

\n

No break (> 10%)

\n

No break (> 10%)

\n

3.6 ± 0.4 %

\n

Charpy impact strength (at 23 °C)

\n

ISO 179-1 / 1eB (notched)

\n

7.9 ± 0.6 kJ/m²

\n

-

\n

-

\n

Hardness

\n

ISO 7619-1 (Durometer, Shore D)

\n

76 Shore D

\n

-

\n

-

\"\"
\"\"

Sample Print Gallery

\n
\"\"
\"\"
\"\"
\"\"

Compare Materials

\n
Material Type Properties Common Uses Extruder Temp Bed Temp Bed Adhesion Shop for Material

PLA

(Polylactic Acid)
  • Easy to print with
  • Minimal warping
  • High degree of part accuracy
  • Earth-friendly material
  • Pleasant semi-sweet smell
  • Cosmetic prints
  • Prototypes
  • Low-stress applications

190-220C

40-60C (optional)

Glass with Magigoo Original, blue painter's tape, glass with coating of hairspray, or glass with a thin coating of PVA glue

ABS

(Acrylonitrile Butadiene Styrene)
  • Strong and slightly flexible
  • Wear resistant
  • Requires heated bed
  • Prone to cracking, delamination, and warping
  • Can be post-processed using acetone vapor
  • Prototypes
  • Mechanical parts
  • Engineering

225-260C

80-110C

Kapton tape, glass with Magigoo Original, glass with a coating of ABS juice (ABS / acetone slurry), or hairspray

PETG

(Polyethylene terephthalate glycol-modified)
  • Durable and strong
  • Easy to print with
  • Low thermal shrinkage
  • Stronger and more temperature resistant than PLA
  • General purpose 3D printing
  • Heavy use prints
  • Engineering and industrial prototyping

230-250C

80-100C

Glass with Magigoo Original, glass with hairspray or painter's tape

Nylon

(Polyamide)
  • Industrial-grade impact and abrasion resistance
  • Durable
  • High strength-to-weight ratio
  • Low friction coefficient
  • Good corrosion resistance to alkalis and organic chemicals
  • Functional prototypes
  • End-use parts

240-260C

60-80C

Glass with Magigoo Original, glass with a thin coating of PVA glue

Polycarbonate

  • High strength
  • Temperature resistant
  • Flame retardant
  • Dimensionally stable
  • Strong inter-layer bonding
  • Prototypes
  • End use products
  • Parts requiring high strength/toughness
  • Parts operating in high temperature environments

260-280C

107-115C

Glass with Magigoo PC, Ultimaker adhesion sheets, glass with thin coating of glue stick / PVA glue

TPU

(Thermoplastic Polyurethane)
  • Highly flexible
  • Qualities of both rubber and plastic
  • Chemical resistant
  • End use parts requiring flexibility and/or chemical resistance
  • Wearables

220-240C

No heat

Magigoo Flex or glass (no adhesives required)

Polypropylene

  • Durable with high toughness and fatigue resistance
  • Low friction and smooth surfaces
  • Semi-flexible
  • Chemical resistance and electrical resistance
  • Prototypes
  • End use products
  • Electrical components
  • Living hinges

205-240C

85-100C

Magigoo PP, Ultimaker adhesion sheets or clear packaging tape

PVA

(Polyvinyl alcohol)
  • Water soluble (no chemicals required)
  • Used primarily as support material in dual extrusion printing
  • Biodegradable with no hazardous by-products
  • Sensitive to moisture absorption - store it in a dry place with dessicant
  • Complex models that require supports for large overhangs, deep internal cavities, and intricate geometries

215-225C

60-70C

Glass
","image":["/images/duniversegear.shop/images/product/ultimaker-nfc-petg-filament-2-85mm-750g-1.jpg","/images/duniversegear.shop/images/product/ultimaker-nfc-petg-filament-2-85mm-750g-2.jpg","/images/duniversegear.shop/images/product/ultimaker-nfc-petg-filament-2-85mm-750g-3.jpg","/images/duniversegear.shop/images/product/ultimaker-nfc-petg-filament-2-85mm-750g-4.jpg","/images/duniversegear.shop/images/product/ultimaker-nfc-petg-filament-2-85mm-750g-5.jpg","/images/duniversegear.shop/images/product/ultimaker-nfc-petg-filament-2-85mm-750g-6.jpg","/images/duniversegear.shop/images/product/ultimaker-nfc-petg-filament-2-85mm-750g-7.jpg","/images/duniversegear.shop/images/product/ultimaker-nfc-petg-filament-2-85mm-750g-8.jpg","/images/duniversegear.shop/images/product/ultimaker-nfc-petg-filament-2-85mm-750g-9.jpg","/images/duniversegear.shop/images/product/ultimaker-nfc-petg-filament-2-85mm-750g-10.jpg","/images/duniversegear.shop/images/product/ultimaker-nfc-petg-filament-2-85mm-750g-11.jpg","/images/duniversegear.shop/images/product/ultimaker-nfc-petg-filament-2-85mm-750g-12.jpg","/images/duniversegear.shop/images/product/ultimaker-nfc-petg-filament-2-85mm-750g-13.jpg","/images/duniversegear.shop/images/product/ultimaker-nfc-petg-filament-2-85mm-750g-14.jpg"],"sku":"ultimaker-nfc-petg-filament-2-85mm-750g","brand":{"@type":"Brand","name":"3D Universe"},"offers":{"@type":"AggregateOffer","lowPrice":44.99,"highPrice":44.99,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://duniversegear.shop/products/ultimaker-nfc-petg-filament-2-85mm-750g","offerCount":11}}
HomeStore

UltiMaker NFC PETG Filament 2.85mm (750g)

UltiMaker NFC PETG Filament 2.85mm (750g)

Overview

Key Features of Ultimaker PETG

Ultimaker PETG sets the standard for industrial applications. Easy to use and versatile, it's suitable for a wide range of use cases.

Key features include:

  • Available in a variety of colors, including transluscent and fluorescent
  • Good printability
  • Tough material
  • Resistance to alcohols and weak acids or bases
  • Temperature resistance up to 76 °C.
  • Compatible with Ultimaker PVA, Ultimaker Breakaway, and AquaSys support materials

Typical Applications

  • Visual prototyping
  • Functional prototyping
  • Short-run manufacturing
  • Custom Components
  • Fittesting
  • Tooling
  • Custom Connectors or packages for liquids
  • 3D printed prosthetic devices

Recommended Print Settings

Extruder Temperature

240C

Build Plate Temperature

85C

Fan Speed

50%

Recommended Printing Speed

30-60 mm/sec

Specifications and Physical Properties

Material Specifications

Diameter

2.85 ± 0.05 mm

Max roundness deviation

0.05 mm

Net filament weight

750 g

Filament length

~ 93 m

Color Information

PETG Black

RAL 9017

PETG White

RAL 9003

PETG Silver

RAL 9006

PETG Transparent

N/A

PETG Blue

RAL 5005

PETG Blue Translucent

Pantone 286 C

PETG Red

RAL 3020

PETG Red Translucent

Pantone 7622 C

PETG Green

RAL 6024

PETG Green Translucent

Pantone 3425 C

PETG Yellow

RAL 1016

PETG Yellow Fluorescent

Pantone 3570 C

PETG Orange

Pantone 1655 C

Physical Properties

Test Method

Typical Value

XY (Flat)

YZ (Side)

Z (Up)

Tensile (Young’s) modulus

ASTM D3039 (1 mm / min)

1939 ± 28 MPa

1874 ± 31 MPa

1711 ± 45 MPa

Tensile stress at yield

ASTM D3039 (5 mm / min)

46.2 ± 0.8 MPa

50.3 ± 1.0 MPa

No yield

Tensile stress at break

ASTM D3039 (5 mm / min)

38.5 ± 1.4 MPa

44.0 ± 3.7 MPa

19.0 ± 6.4 MPa

Elongation at yield

ASTM D3039 (5 mm / min)

5.9 ± 0.1 %

6.0 ± 0.2 %

No yield

Elongation at break

ASTM D3039 (5 mm / min)

7.6 ± 0.2 %

6.4 ± 0.6 %

1.8 ± 0.8 %

Flexural modulus

ISO 178 (1 mm / min)

1882 ± 30 MPa

1681 ± 61 MPa

1489 ± 25 MPa

Flexural strength

ISO 178 (5 mm / min)

78.9 ± 1.0 MPa at 5.5% strain

75.8 ± 2.0 MPa at 5.5% strain

50 ± 3.5 MPa at 3.6% strain

Flexural strain at break

ISO 178 (5 mm / min)

No break (> 10%)

No break (> 10%)

3.6 ± 0.4 %

Charpy impact strength (at 23 °C)

ISO 179-1 / 1eB (notched)

7.9 ± 0.6 kJ/m²

-

-

Hardness

ISO 7619-1 (Durometer, Shore D)

76 Shore D

-

-

Sample Print Gallery

Compare Materials

Material Type Properties Common Uses Extruder Temp Bed Temp Bed Adhesion Shop for Material

PLA

(Polylactic Acid)
  • Easy to print with
  • Minimal warping
  • High degree of part accuracy
  • Earth-friendly material
  • Pleasant semi-sweet smell
  • Cosmetic prints
  • Prototypes
  • Low-stress applications

190-220C

40-60C (optional)

Glass with Magigoo Original, blue painter's tape, glass with coating of hairspray, or glass with a thin coating of PVA glue

ABS

(Acrylonitrile Butadiene Styrene)
  • Strong and slightly flexible
  • Wear resistant
  • Requires heated bed
  • Prone to cracking, delamination, and warping
  • Can be post-processed using acetone vapor
  • Prototypes
  • Mechanical parts
  • Engineering

225-260C

80-110C

Kapton tape, glass with Magigoo Original, glass with a coating of ABS juice (ABS / acetone slurry), or hairspray

PETG

(Polyethylene terephthalate glycol-modified)
  • Durable and strong
  • Easy to print with
  • Low thermal shrinkage
  • Stronger and more temperature resistant than PLA
  • General purpose 3D printing
  • Heavy use prints
  • Engineering and industrial prototyping

230-250C

80-100C

Glass with Magigoo Original, glass with hairspray or painter's tape

Nylon

(Polyamide)
  • Industrial-grade impact and abrasion resistance
  • Durable
  • High strength-to-weight ratio
  • Low friction coefficient
  • Good corrosion resistance to alkalis and organic chemicals
  • Functional prototypes
  • End-use parts

240-260C

60-80C

Glass with Magigoo Original, glass with a thin coating of PVA glue

Polycarbonate

  • High strength
  • Temperature resistant
  • Flame retardant
  • Dimensionally stable
  • Strong inter-layer bonding
  • Prototypes
  • End use products
  • Parts requiring high strength/toughness
  • Parts operating in high temperature environments

260-280C

107-115C

Glass with Magigoo PC, Ultimaker adhesion sheets, glass with thin coating of glue stick / PVA glue

TPU

(Thermoplastic Polyurethane)
  • Highly flexible
  • Qualities of both rubber and plastic
  • Chemical resistant
  • End use parts requiring flexibility and/or chemical resistance
  • Wearables

220-240C

No heat

Magigoo Flex or glass (no adhesives required)

Polypropylene

  • Durable with high toughness and fatigue resistance
  • Low friction and smooth surfaces
  • Semi-flexible
  • Chemical resistance and electrical resistance
  • Prototypes
  • End use products
  • Electrical components
  • Living hinges

205-240C

85-100C

Magigoo PP, Ultimaker adhesion sheets or clear packaging tape

PVA

(Polyvinyl alcohol)
  • Water soluble (no chemicals required)
  • Used primarily as support material in dual extrusion printing
  • Biodegradable with no hazardous by-products
  • Sensitive to moisture absorption - store it in a dry place with dessicant
  • Complex models that require supports for large overhangs, deep internal cavities, and intricate geometries

215-225C

60-70C

Glass
Select Color
From $44.99
UltiMaker NFC PETG Filament 2.85mm (750g)—
$44.99
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11

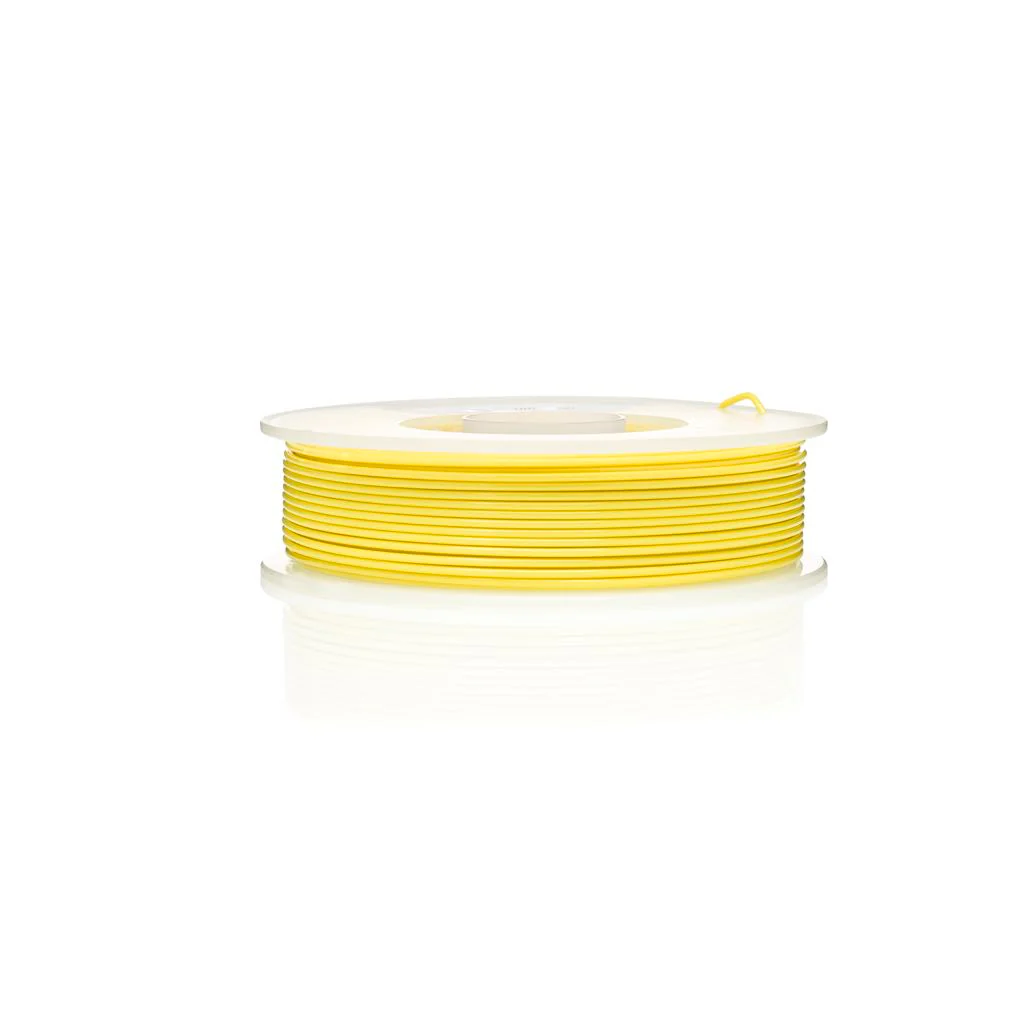

Product image 12
Product image 13
Product image 14

Description

Overview

Key Features of Ultimaker PETG

Ultimaker PETG sets the standard for industrial applications. Easy to use and versatile, it's suitable for a wide range of use cases.

Key features include:

  • Available in a variety of colors, including transluscent and fluorescent
  • Good printability
  • Tough material
  • Resistance to alcohols and weak acids or bases
  • Temperature resistance up to 76 °C.
  • Compatible with Ultimaker PVA, Ultimaker Breakaway, and AquaSys support materials

Typical Applications

  • Visual prototyping
  • Functional prototyping
  • Short-run manufacturing
  • Custom Components
  • Fittesting
  • Tooling
  • Custom Connectors or packages for liquids
  • 3D printed prosthetic devices

Recommended Print Settings

Extruder Temperature

240C

Build Plate Temperature

85C

Fan Speed

50%

Recommended Printing Speed

30-60 mm/sec

Specifications and Physical Properties

Material Specifications

Diameter

2.85 ± 0.05 mm

Max roundness deviation

0.05 mm

Net filament weight

750 g

Filament length

~ 93 m

Color Information

PETG Black

RAL 9017

PETG White

RAL 9003

PETG Silver

RAL 9006

PETG Transparent

N/A

PETG Blue

RAL 5005

PETG Blue Translucent

Pantone 286 C

PETG Red

RAL 3020

PETG Red Translucent

Pantone 7622 C

PETG Green

RAL 6024

PETG Green Translucent

Pantone 3425 C

PETG Yellow

RAL 1016

PETG Yellow Fluorescent

Pantone 3570 C

PETG Orange

Pantone 1655 C

Physical Properties

Test Method

Typical Value

XY (Flat)

YZ (Side)

Z (Up)

Tensile (Young’s) modulus

ASTM D3039 (1 mm / min)

1939 ± 28 MPa

1874 ± 31 MPa

1711 ± 45 MPa

Tensile stress at yield

ASTM D3039 (5 mm / min)

46.2 ± 0.8 MPa

50.3 ± 1.0 MPa

No yield

Tensile stress at break

ASTM D3039 (5 mm / min)

38.5 ± 1.4 MPa

44.0 ± 3.7 MPa

19.0 ± 6.4 MPa

Elongation at yield

ASTM D3039 (5 mm / min)

5.9 ± 0.1 %

6.0 ± 0.2 %

No yield

Elongation at break

ASTM D3039 (5 mm / min)

7.6 ± 0.2 %

6.4 ± 0.6 %

1.8 ± 0.8 %

Flexural modulus

ISO 178 (1 mm / min)

1882 ± 30 MPa

1681 ± 61 MPa

1489 ± 25 MPa

Flexural strength

ISO 178 (5 mm / min)

78.9 ± 1.0 MPa at 5.5% strain

75.8 ± 2.0 MPa at 5.5% strain

50 ± 3.5 MPa at 3.6% strain

Flexural strain at break

ISO 178 (5 mm / min)

No break (> 10%)

No break (> 10%)

3.6 ± 0.4 %

Charpy impact strength (at 23 °C)

ISO 179-1 / 1eB (notched)

7.9 ± 0.6 kJ/m²

-

-

Hardness

ISO 7619-1 (Durometer, Shore D)

76 Shore D

-

-

Sample Print Gallery

Compare Materials

Material Type Properties Common Uses Extruder Temp Bed Temp Bed Adhesion Shop for Material

PLA

(Polylactic Acid)
  • Easy to print with
  • Minimal warping
  • High degree of part accuracy
  • Earth-friendly material
  • Pleasant semi-sweet smell
  • Cosmetic prints
  • Prototypes
  • Low-stress applications

190-220C

40-60C (optional)

Glass with Magigoo Original, blue painter's tape, glass with coating of hairspray, or glass with a thin coating of PVA glue

ABS

(Acrylonitrile Butadiene Styrene)
  • Strong and slightly flexible
  • Wear resistant
  • Requires heated bed
  • Prone to cracking, delamination, and warping
  • Can be post-processed using acetone vapor
  • Prototypes
  • Mechanical parts
  • Engineering

225-260C

80-110C

Kapton tape, glass with Magigoo Original, glass with a coating of ABS juice (ABS / acetone slurry), or hairspray

PETG

(Polyethylene terephthalate glycol-modified)
  • Durable and strong
  • Easy to print with
  • Low thermal shrinkage
  • Stronger and more temperature resistant than PLA
  • General purpose 3D printing
  • Heavy use prints
  • Engineering and industrial prototyping

230-250C

80-100C

Glass with Magigoo Original, glass with hairspray or painter's tape

Nylon

(Polyamide)
  • Industrial-grade impact and abrasion resistance
  • Durable
  • High strength-to-weight ratio
  • Low friction coefficient
  • Good corrosion resistance to alkalis and organic chemicals
  • Functional prototypes
  • End-use parts

240-260C

60-80C

Glass with Magigoo Original, glass with a thin coating of PVA glue

Polycarbonate

  • High strength
  • Temperature resistant
  • Flame retardant
  • Dimensionally stable
  • Strong inter-layer bonding
  • Prototypes
  • End use products
  • Parts requiring high strength/toughness
  • Parts operating in high temperature environments

260-280C

107-115C

Glass with Magigoo PC, Ultimaker adhesion sheets, glass with thin coating of glue stick / PVA glue

TPU

(Thermoplastic Polyurethane)
  • Highly flexible
  • Qualities of both rubber and plastic
  • Chemical resistant
  • End use parts requiring flexibility and/or chemical resistance
  • Wearables

220-240C

No heat

Magigoo Flex or glass (no adhesives required)

Polypropylene

  • Durable with high toughness and fatigue resistance
  • Low friction and smooth surfaces
  • Semi-flexible
  • Chemical resistance and electrical resistance
  • Prototypes
  • End use products
  • Electrical components
  • Living hinges

205-240C

85-100C

Magigoo PP, Ultimaker adhesion sheets or clear packaging tape

PVA

(Polyvinyl alcohol)
  • Water soluble (no chemicals required)
  • Used primarily as support material in dual extrusion printing
  • Biodegradable with no hazardous by-products
  • Sensitive to moisture absorption - store it in a dry place with dessicant
  • Complex models that require supports for large overhangs, deep internal cavities, and intricate geometries

215-225C

60-70C

Glass
